Lost your Transit keys or need a spare? Lock City provides complete replacement key services, including cutting, transponder programming, and immobiliser pairing. Whether you’ve lost all keys or just want a backup, everything is completed on-site and fully tested before handover.
Transit Ignition Problems
Key won’t turn or feels loose in the ignition? Ford Transit ignition faults are commonly caused by worn barrels, damaged Tibbe tracks, or steering lock issues. Lock City accurately diagnoses the cause and carries out precise repairs or replacements to restore smooth, reliable ignition operation without unnecessary part changes.
Lock City technicians programme Tibbe keys, laser keys, and Transit smart keys using Ford IDS, FDRS, and Smart Pro, Abrites and True Code software.
Ford Transit security architecture evolved across three generations, each introducing distinct immobiliser protocols, lock mechanisms, and programming requirements. Mk6 Transits (2000–2006) use Tibbe 6-cut locks with PATS 2/3 and Texas Instruments 4D 40-bit transponders. Mk7 Transits (2006–2014) feature high-security Tibbe locks with PATS 4 and Texas Carbon ID63 chip with 80+ bytes for newer Ford models. Mk8 Transits (2016–present) use laser-cut HU101/HU198 keys with PATS 5 and Texas Carbon ID63 chip with 80+ bytes for newer Ford models.
Each generation requires specific diagnostic equipment, key blanks, and programming procedures. Lock City maintains licensed Ford IDS/FDRS access, genuine and aftermarket key blanks, and current security code database subscriptions for all Transit generations. Our mobile workshop carries 100+ Transit key blanks covering every model variant from 2000 to present. Ford Transit lost key programming requires most software to programme new transponders. Mk6 and Mk7 Transits require 8-digit incode extraction through the OBD-II port. Mk8 Transits require 16-digit security codes retrieved from Ford’s database using the vehicle’s 17-digit VIN. Starting with the early Transits to the latest MK8’s tho incode/outcode protocols are needed. This is done in the background whether using dealer level or aftermarket tools.
From late 2016, Ford changed the transponder chip to an ID47/49 hi tag pro transponder chip but still using the HU101 which runs to present day. However proximity keys, although still using the HU101 blade, these are internal cuts rather than external cuts of the 101, which is commonly known as HU198, which runs to present day. However, proximity keys, although they still use the HU101 blade, these are internal cuts rather than external.
Lock City programmes keys on-site using various aftermarket tools such as Advanced Diagnostics Smart Pro, Truecode or Abrites, and licensed OEM Ford diagnostic software within 30–60 minutes.
Key Types We Can Help With
Tibbe 6-cut keys (Mk6-Mk7)
Laser-cut HU101/HU198 keys (Mk8)
PATS transponder keys
Ford IDS/FDRS programming
Smart key fobs (2023+ models)
Remote flip keys

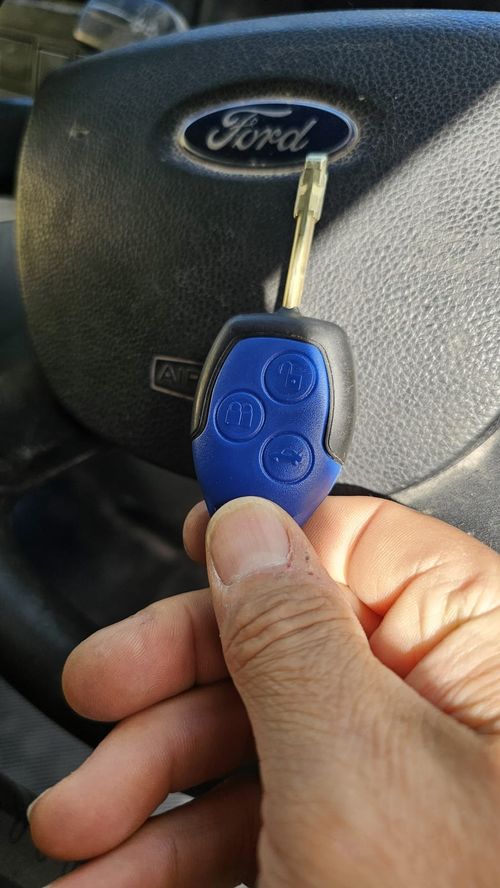

Ford blue fobs for Mk7 Transits
Services Tailored for Ford Transit Owners
Transit-specific Tibbe and laser-cut key programming
Ford IDS, FDRS and dealer-level diagnostics
Non-destructive entry using Lishi Transit-specific picks
30–60 minute emergency response across Bristol area
Commercial fleet pricing with account invoicing available
Bristol’s Premier Choice for Transit Locksmith Services
Ford Transit entry without keys requires non-destructive techniques specific to Tibbe and laser-cut lock mechanisms. Mk7 high-security Tibbe locks use a higher security lock, which requires special bypass techniques. Lock City technicians achieve 2–5 minute entry times using Lishi Tibbe picks and HU101/HU198 decoders.
Lock City provides fleet locksmith services for businesses operating Ford Transit vans across Bristol and Bath. Commercial fleet services address key management, emergency access, and security upgrade requirements for trade companies, courier services, and mobile service providers operating Transit Custom, Connect, and Courier models.
Rapid, On-Site Transit Key Replacement: Lost spare key from £125 plus VAT. Lost all keys from £165 plus VAT. Same-day service for most Transit key issues across all generations.
Transparent Pricing: Emergency lockout from £110 plus VAT. Smart key fob replacement (Mk8 2018+) from £195 plus VAT. All quotes require registration for accurate parts identification.
Commercial Fleet Solutions: Maintaining spare keys for Fleet Managers
Your Transit Deserves Expert Care

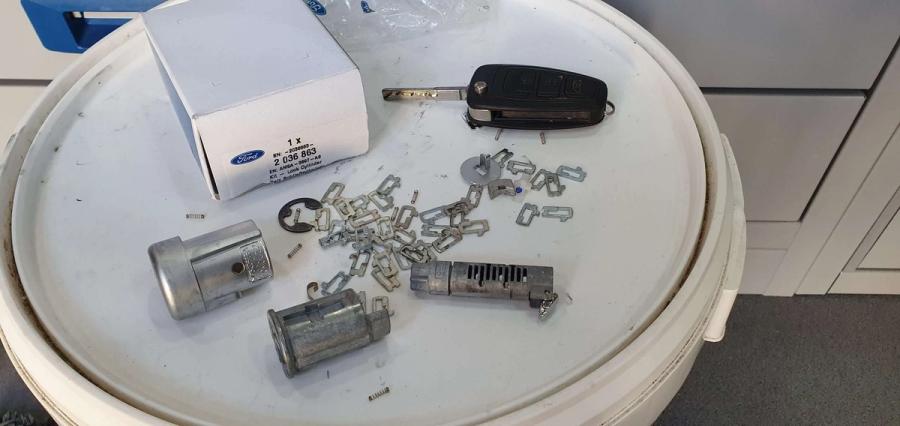

Transit ignition failures result from Tibbe key blade wear, lock wafer deterioration, or barrel mechanism failure. Mk6 and Mk7 Transits experience key binding from worn 6-cut profiles. Mk8 HU101 laser-cut keys fail when wafer springs weaken or internal cuts wear beyond tolerance. Lock City diagnoses ignition faults, replaces cylinders matched to existing keys, and programmes replacement barrels to the PATS system.
Previous Customers

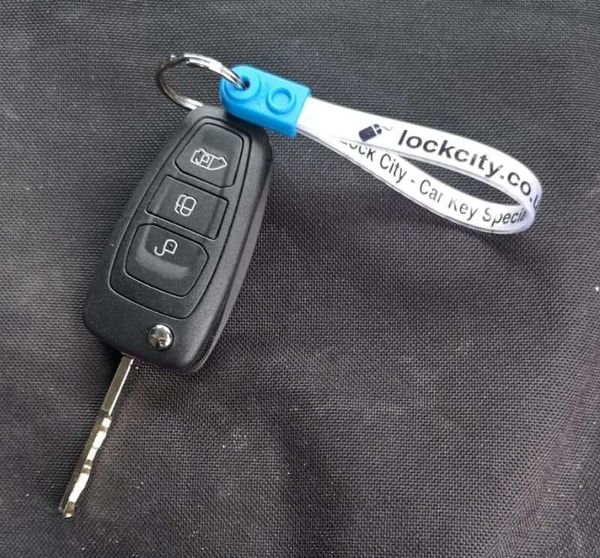

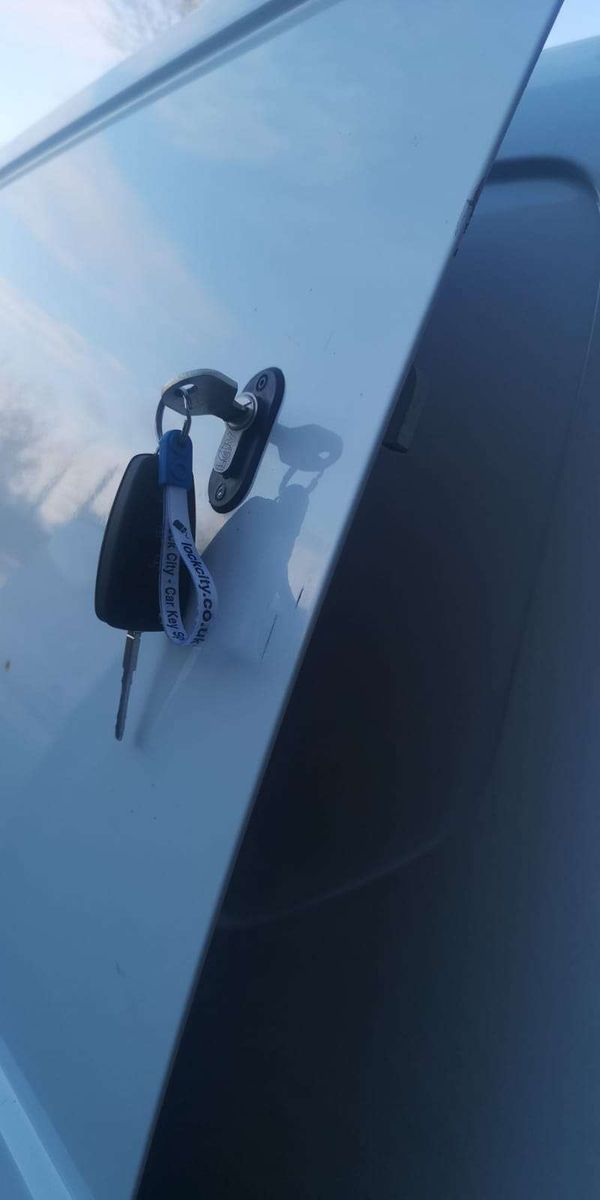

Keys of Happy Ford Transit Owners
What Our Customers Say
Amy Long
★★★★★
Excellent experience. Great communication, efficient timing, good price, accommodating & a very warm and friendly service. Would definitely recommend!
Paul Boardman
★★★★★
Great service today from Barry, the 4th locksmith/key technician to have a go at accessing my car after the keys were locked in the boot. Almost resigned to smashing the window, but he managed to access the car after 2 hours in the wind and rain, with a broken mechanism inside the lock, confirmed by the others who attempted the pick, brilliant stuff.
Louise Berritta
★★★★★
I was in a real panic, having locked my keys in my boot. Delighted with the efficient and effective service from this company. Had my keys back in my hand in under 5 minutes. Strongly recommend
Jon Payne
★★★★★
Bought a new car which only had one key. These guys came out and created a second one quickly and inexpensively. Way cheaper than going to the main dealer and the only people in Bristol who could do it for the Audi A1 I have. Brilliant service.
Alliyah Prince
★★★★★
Locked my keys in my car so Called at 9:45 and was out by 11. Very quick in my eyes considering it wasn’t a booked appointment. Came and unlocked my car in longer than 5 minutes!
Andy Spiers
★★★★★
Amazing service! I got an email response within minutes on a Sunday night. Arrived as arranged 8:30 next morning and had me back on the road within 30 mins for a very reasonable price. Highly recommended.
Phil Beckwith
★★★★★
Brilliant service and at a reasonable cost highly recommended using this company.

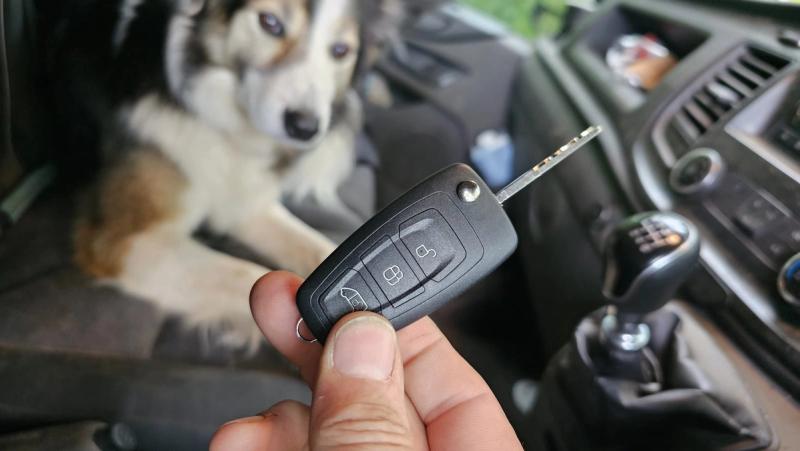

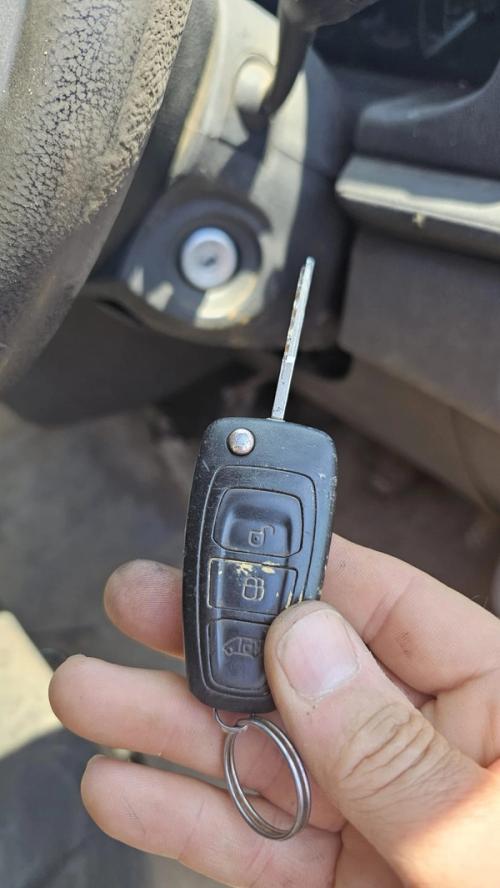

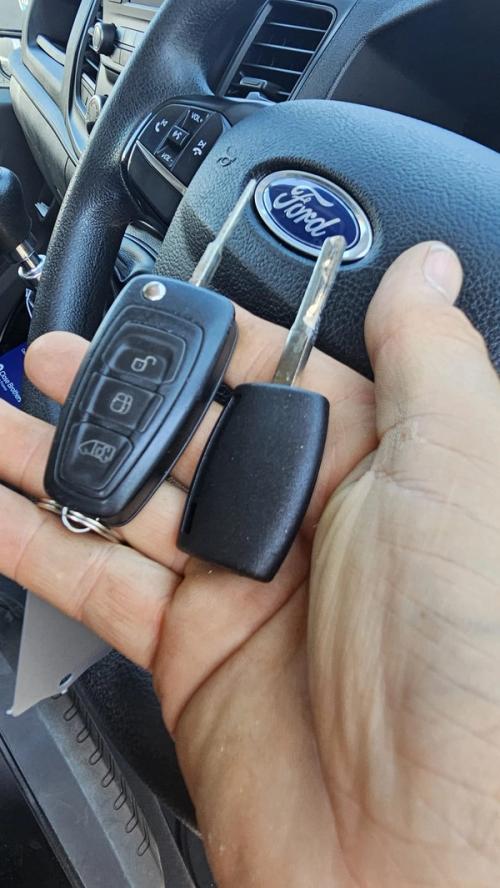

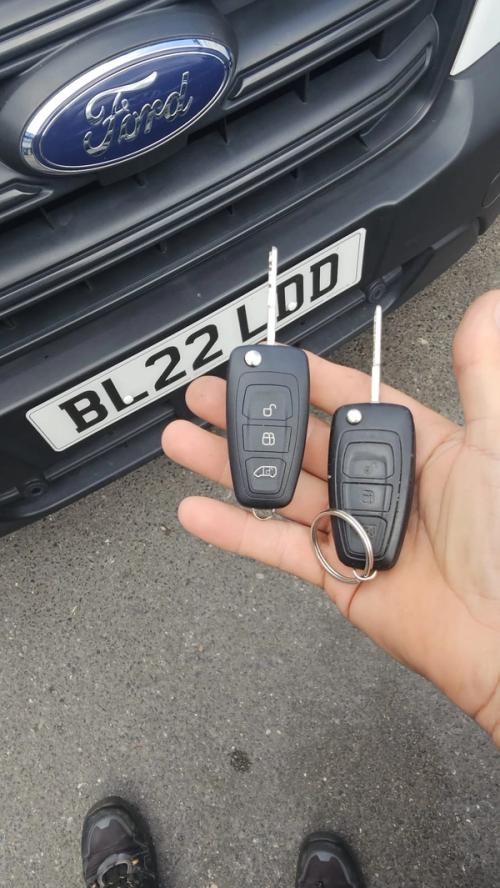

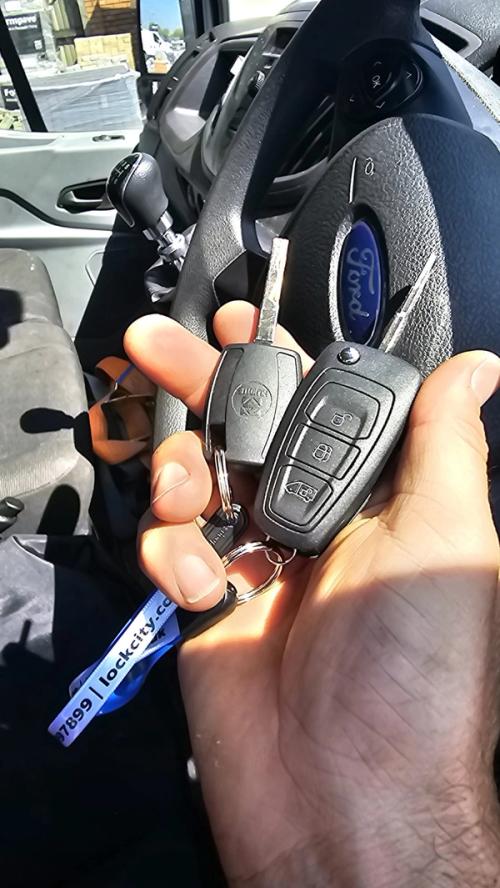

Real jobs, real Ford Transits
Recent Ford Transit keys we've done

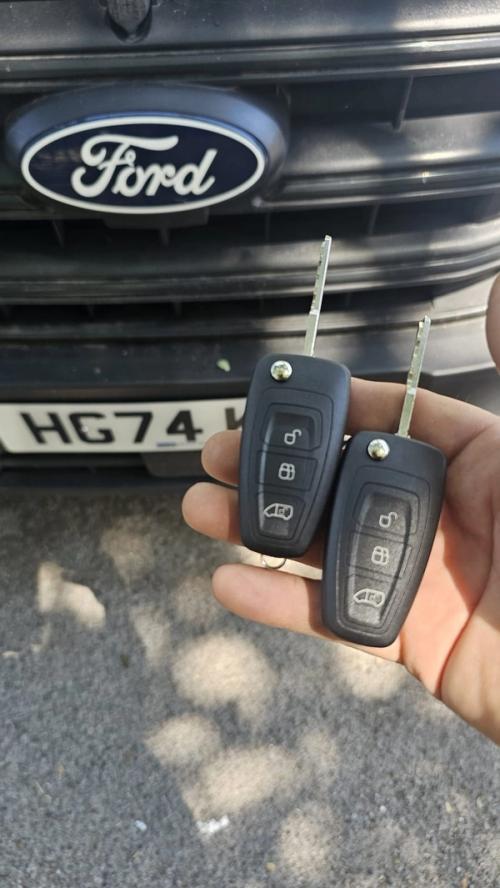

Genuine jobs from our own van, not stock photos — Ford Transit keys cut and coded at the roadside across Brislington East, Twerton & Whiteway, Yate North & 7 more areas. Tap any photo to see the story.
Can you replace keys for all Ford Transit generations?
Lock City covers all Transit generations: Mk6 (2000–2006) with Tibbe 6-cut and PATS 2/3, Mk7 (2006–2014) with high-security Tibbe and PATS 4, and Mk8 (2014–present) with laser-cut HU101/HU198 keys and PATS 5. Transit Custom, Connect, and Courier models also supported.
Does replacing a Ford Transit key require PATS programming?
All Transit keys from 1996 onwards require Ford PATS (Passive Anti-Theft System) programming. Mk6–Mk7 use 8-digit incode extraction via OBD-II. Mk8 requires 16-digit security codes from Ford’s database using your 17-digit VIN. Lock City maintains licensed Ford IDS access for all programming procedures.
What if I’ve lost all keys to my Transit van?
Lock City programmes Transit keys without working spares on-site. We extract security codes, cut new Tibbe or laser-cut keys using Silca Futura Pro, and programme transponders using Autel MaxiIM IM608. Process takes 30–90 minutes. Documentation required: V5C or proof of ownership.
Are Mk8 Transit smart keys more expensive to replace?
Mk8 smart key services cost more than traditional Tibbe key replacement due to BCM programming complexity and component costs. Smart key fob replacement (Mk8 2018+) ranges £250–400. Traditional key replacement for Mk6–Mk7 ranges £150–350 depending on whether spare key exists.
How can I get the quickest service for a Transit lockout?
Call 07967 097 899 for priority response. Emergency lockouts across Bristol area receive 30–60 minute response. Provide registration number, Transit generation (Mk6/Mk7/Mk8), and your location. Text confirmation sent with appointment slot and technician ETA.

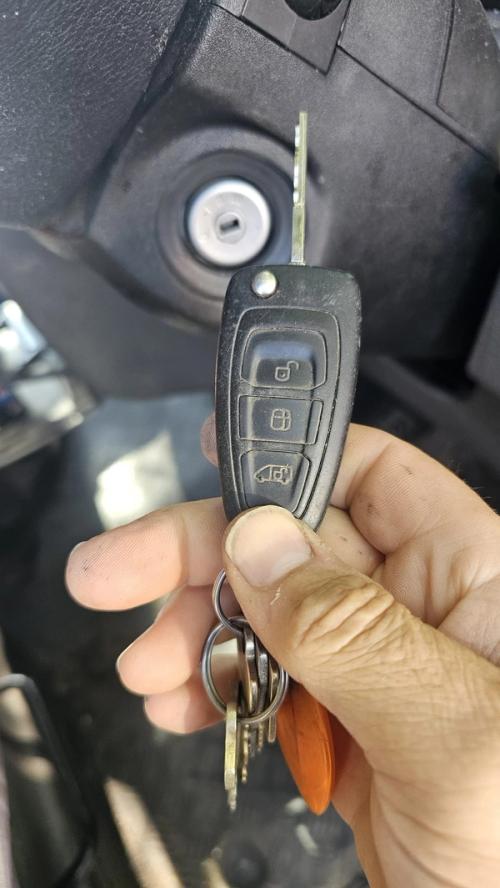

Ignition

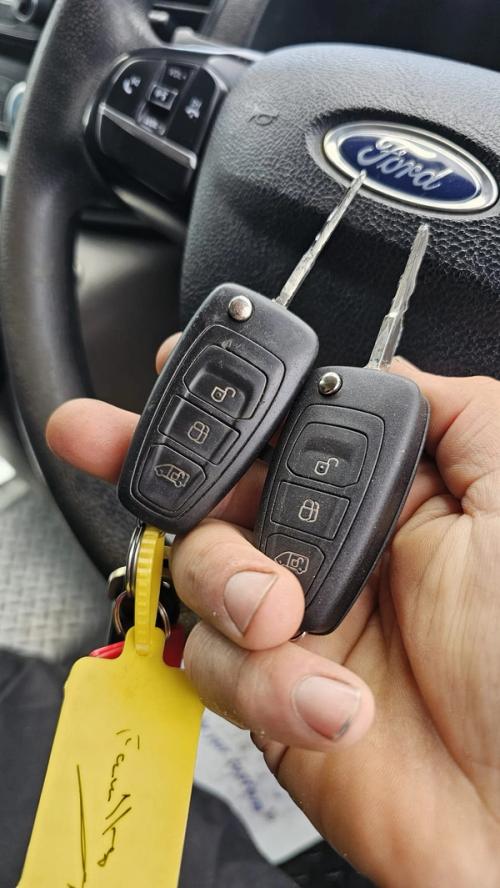

Spare key

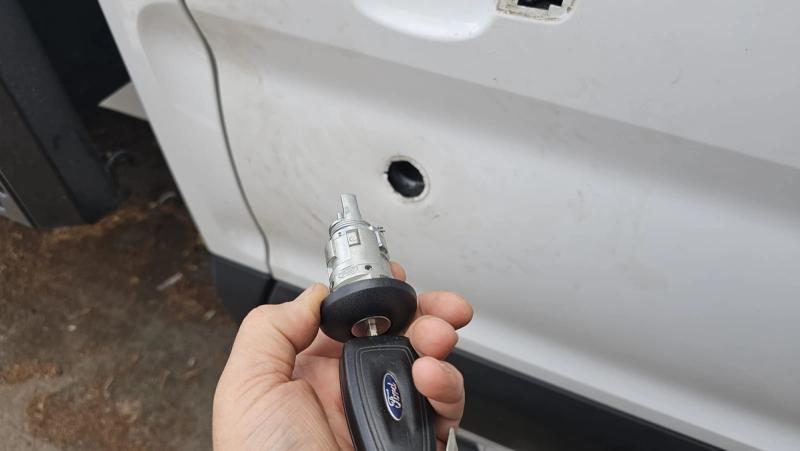

Ignition
